Technical Specifications of aReception

aReception is equipped with an industrial cover, which ensures increased resistance to unauthorized attempts at damage or disconnection of individual components, thus offering a reliable and safe choice for your needs.

In environments without access to electrical power, aReception can be equipped with a battery and solar panel, allowing for seamless operation in these situations.

For environments without the possibility of wired network connection, you can use an additional Wi-Fi module, which ensures wireless connectivity.

Terminal dimensions icon

Terminal Dimensions

Height: 66.8 cm (26.3 inches)

Width: 49.3 cm (19.4 inches)

Depth: 8.8 cm (3.5 inches)

Weight: 11 kg (24.3 pounds)

Computer icon

Computer

Mainboard Kontron D3633-S

Intel CPU i5-9500

HDD SSD m.2 PCIe 128GB

RAM DDR4 8GB, 2666MHz

Sunny 120W Adapter + AC Cable

Noctua 65W CPU Cooler

Icon display

Display

27'' Touchscreen LED Monitor

AUO+ACME M270HVN02.0 enhance to 500nits with BLD06_V4

FullHD 1920x1080

Touchscreen Fortes Glass

Camera & microphone icon

Camera & Microphone

Integrated Full HD Logitech C925e Webcam with Microphone

External soundbar for noisier places

Connection icon

Connection

220/230V Power Adapter Cable

Optional external battery and solar panel

Ethernet cable RJ45, internet min. 1 Mb/s

Optional Wi-Fi module

Mounting icon

Mounting

VESA 100 x 100 mm (about 4 x 4 inches)

Professional Edbak SV52 Stand

Additional Modules

A wide range of additional devices can be added to the Reception, such as chip, NFC card or document readers, visitor access card issuing devices, QR codes or payment terminals, or parcel dispensing boxes. It is also possible to connect the reception with the building’s control system, allowing it to control some local systems, communicate via REST interface (elevator call, opening entrance doors, turning lights on/off), and integrate it into your existing environment.

Card Readers, NFC, QR Codes

Payment Terminals

Pick-up Boxes

Building Control Systems

If you prefer a fully customized hardware solution that meets your specific needs, we are happy to accommodate you. Together, we will design the most efficient and suitable solution that will be completely tailored to your requirements. You can assemble your own configuration from individual components, such as a touch display, camera, speaker, computer, etc., to create a unique aReception exactly according to your vision.

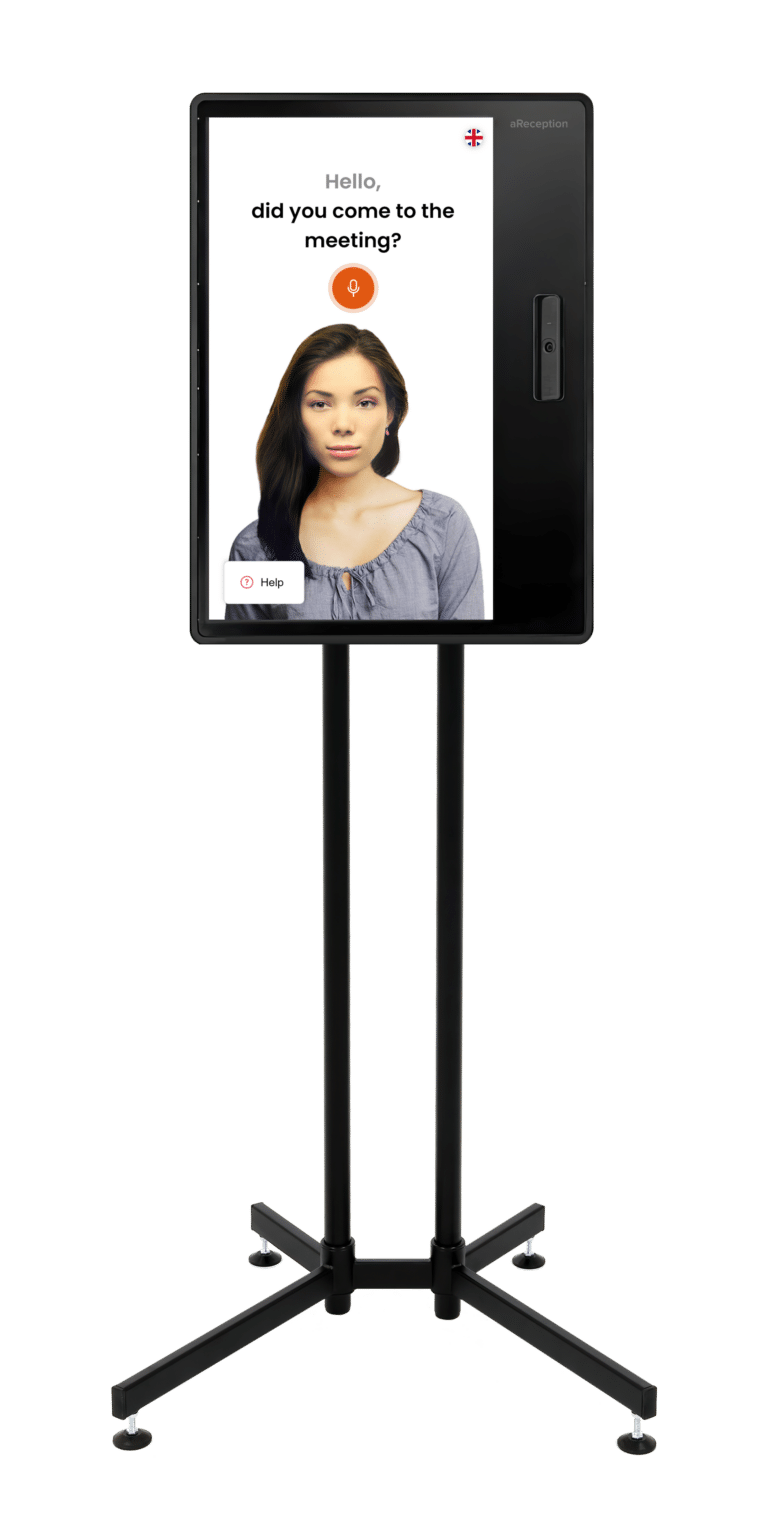

aReception Terminal with Stand

What Is Included in the Package?

The set includes a hardware terminal, power and network cable. Optionally, it also includes a mounting solution using a professional stand.

aReception Terminal

The configuration includes a 27" touch screen display with Full HD resolution (1920x1080). Internal components include an integrated computer, camera, and microphone.

Power Cable

Power cable 220/230V.

Network Cable

RJ45 Ethernet cable. The minimum requirements for internet connection are 1 Mb/s for both download and upload.

Professional Stand

You have the option to mount the terminal using a VESA bracket with dimensions of 100x100 mm, or you can take advantage of the professional stand offer for the price of 259 EUR.
